Agriculture
UN-Trike Ambulance
Technic
technical datas

standard outrigger system
Video - Agriculture flight


Va

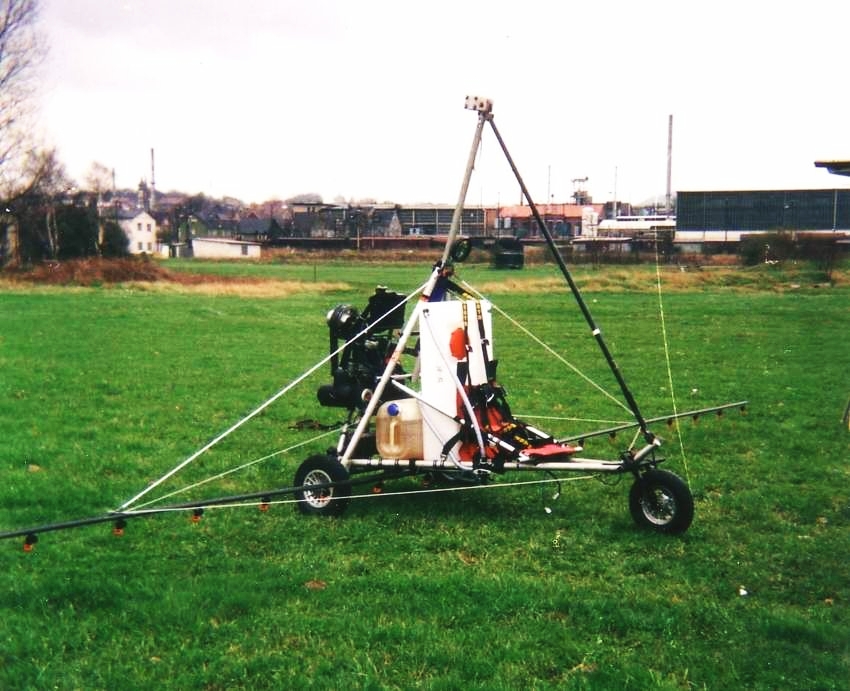

Double seater - Trike Basic version
Engine Rotax
Weight load Volume approx. 180 Ltrs
Application wide 12 m, ( flight level at 1,0 m )
Outrigger 2 x 4,50 m
Spraying Nozzels 20 - 24  ( or as necessary )
Ltrs. / ha according to application fuel and pressure 8 - 20 Ltrs.
Sound level 57,4 dB (A)

Further information and advice on request.

Agriculture development of Trikeīs since 1986.

Agrar

_________________________________________________________________________________

Rotor - ISG 100

technical datas:                            ISO



Container for ice granulate and others.
Container volume:              160 Ltrs
Motor 12 Volts
application level:              10 - 80 m
Trike dry weight:                  167 kg
loading capacity:         up to 283 kg
flight speed:       Vmin.       53 km/h
                        Vcr.  80 - 120 km/h
                        Vmax.    + 140 km/h
application speed:     ~ 50 - 70 km/h

RPMīs to regulate according to throw expanse.
.....................................................

Range of employments :

The agri versions are specific developed to use for:
Mosquito-, Locust ( Grasshoppers ) control, seeds of corn, fertilization, crop spraying, etc.


New:

The newest development of this units are to use for " Tricho caps " application on Maize fields.
          loading volume:    approx. 160 Ltrs.
          application range: approx. 50 ha / hrs.


To fit without additional drill holes on the frame at all of our DS Trikes.
Time to change from a double seater in a agri version and back is approx. 45 minutes.
